AutoPIPE CONNECT Edition
Piping Design and Analysis Software
#PipingEngineer #StructuralEngineer
AutoPIPE CONNECT Edition is a stand-alone design and analysis application for calculation of piping stresses, fatigue stresses, fluid transient, bowing or thermal transient analysis, flange or pipe support design, and equipment nozzle loading analysis under static and dynamic loading condition.
AutoPIPE CONNECT Edition benefits;
- Save time with an easy-to-use application
- Perform advanced analysis and design
- Streamline multi-discipline workflows
- Optimize pipe supports
- Create graphical results and reports
AutoPIPE CONNECT Edition all features,
- Static Analysis
- Piping Design codes ASME B31.1, B31.3, B31.4, and B31.8, EN13480
- Automatic Ring Main Generator
- Batch Automation
- Flange Design
- Hanger Selection
- Hot Clash Detection
- Integration and Interoperability with AutoPLANT®, PlantSpace®, OpenPlant™, Plant 3D, PDS, PDMS, SmartPlant, CATIA, Inventor,
SolidWorks, LISEGA, CADWORX, Excel, AutoCAD, and Ceasar II - PipeLink
- Response Spectrum Analysis
- Snow Loading
- Static Earthquake Loadings (ALA/ASCE-2002 / 2010, GB50011-2001, Mexican CFE-2008, user-defined)
- Static Linear and Non-linear Analysis
- Thermal Bowing
- Wind Loadings (ASCE, ASCE 2002 and 2010, UBC and user profile)
Highlight features:

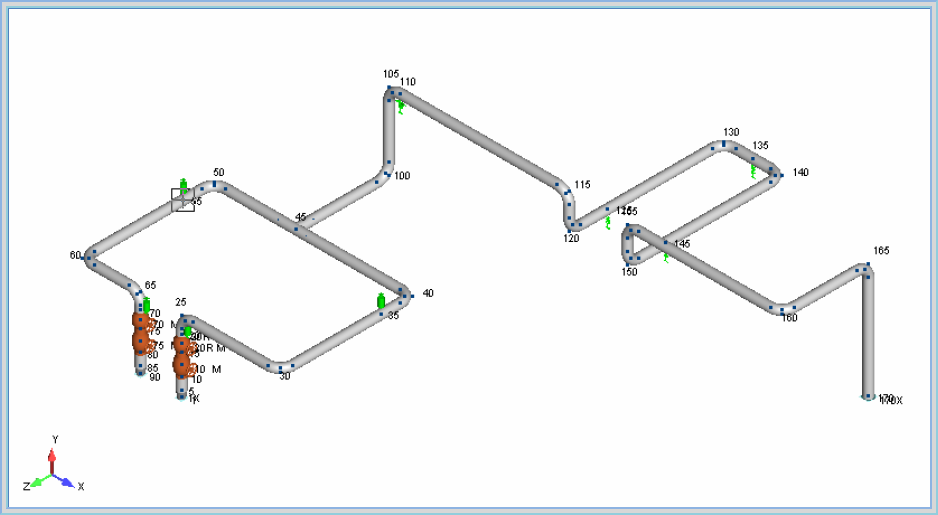

Integration and Interoperability CAESAR II and other programs.
AutoPIPE stores model information in a proprietary binary database structure. However, there are multiple translators provided to convert the most popular file types (PXF, PCF, ADL, DWG, etc..) into AutoPIPE models.
* AutoPIPE CONNECT Edition can read and write CAESAR II files!
File Import/Export
Import:
- AutoPLANT Modeler (PXF)
- OpenPlant Modeler (PXF)
- Caesar II Neutral (CII)
- Aveva PDMS (CII)
- Intergraph PDS (N)
- ADLPipe (ADI)
- Smart Plant (PCF)
- Aveva E3D (XML)
- CADWorx (PCF)
- SolidWorks (PCF)
- AutoDesk Inventor (PCF)
- ATIA (PCF)
- Autodesk Plant 3D (PCF)
Export:
- AutoPLANT Modeler - Geometry/Results (PXF)
- AutoCAD (DXF)
- Caesar II neutral (CII)
- Caesar II XML (XML)
- Caesar II (C2)
- Isogen (PCF)
- JSpace Model (JSM)
- DGN Model (DGN)
- imodel (IMODEL)
- LiCAD (APXT)
- Export to LiCAD (TXT)
- Input Database (MDB)
- Results Database (MDB)
- SACS SQLite Database (DB) [Technology Preview]
- SQLite Database (DB)
- Nozzle Loads to AutoPIPE Nozzle (PXF)
- Nozzle Loads to AutoPIPE Vessel
- Model to STAAD Using PipeLink (PIPELINK)
- Model to STAAD Using SQLite PipeLink (PIPELINK.DB)
Pipe supports analysis with Structural analysis software.
AutoPIPE allows the engineers to transfer Pipe stress data importing into the structural environment in STAAD.Pro.
Video
Capabilities
- Analyze and visualize pipe stress: Provide confidence in the safety of your engineering designs
- Check pipe stress displacements and clashes to Increase plant model accuracy
- Comply with industry codes and standards
- Design, model, and analyze 3D piping systems
- Reference structural model for pipe stress analysis
Analyze and visualize pipe stress: Provide confidence in the safety of your engineering designs
Provide confidence in the safety of your engineering designs with static and load sequencing nonlinear analysis. Perform analyses to examine different loading scenarios including thermal, seismic, wind, and dynamic load cases. Instantly view stresses, deflections, forces, and moments.
Check pipe stress displacements and clashes to Increase plant model accuracy
Increase plant model accuracy by determining pipe stress displacements due to loading cases such as temperature, seismic, or other extreme loading conditions. Analyze any loading condition applied to piping and structures then use Navigator or OpenPlant Modeler to evaluate and resolve clashes
Comply with industry codes and standards
Ensure your projects comply with more than 30 global design standards across the power, nuclear, offshore, chemical, and oil and gas industries. Incorporate ASME, British, European, French, Japanese, Russian, API, NEMA, ANSI, ASCE, AISC, UBC, ISO, and WRC guidelines and design limits.
Design, model, and analyze 3D piping systems
Design, model, and analyze 3D piping systems to international piping specifications based on parametric component catalogs. Integrate the 3D piping model with pipe stress analysis tools to increase design quality and design productivity. Improve the overall engineering integrity and quality of piping models
Reference structural model for pipe stress analysis

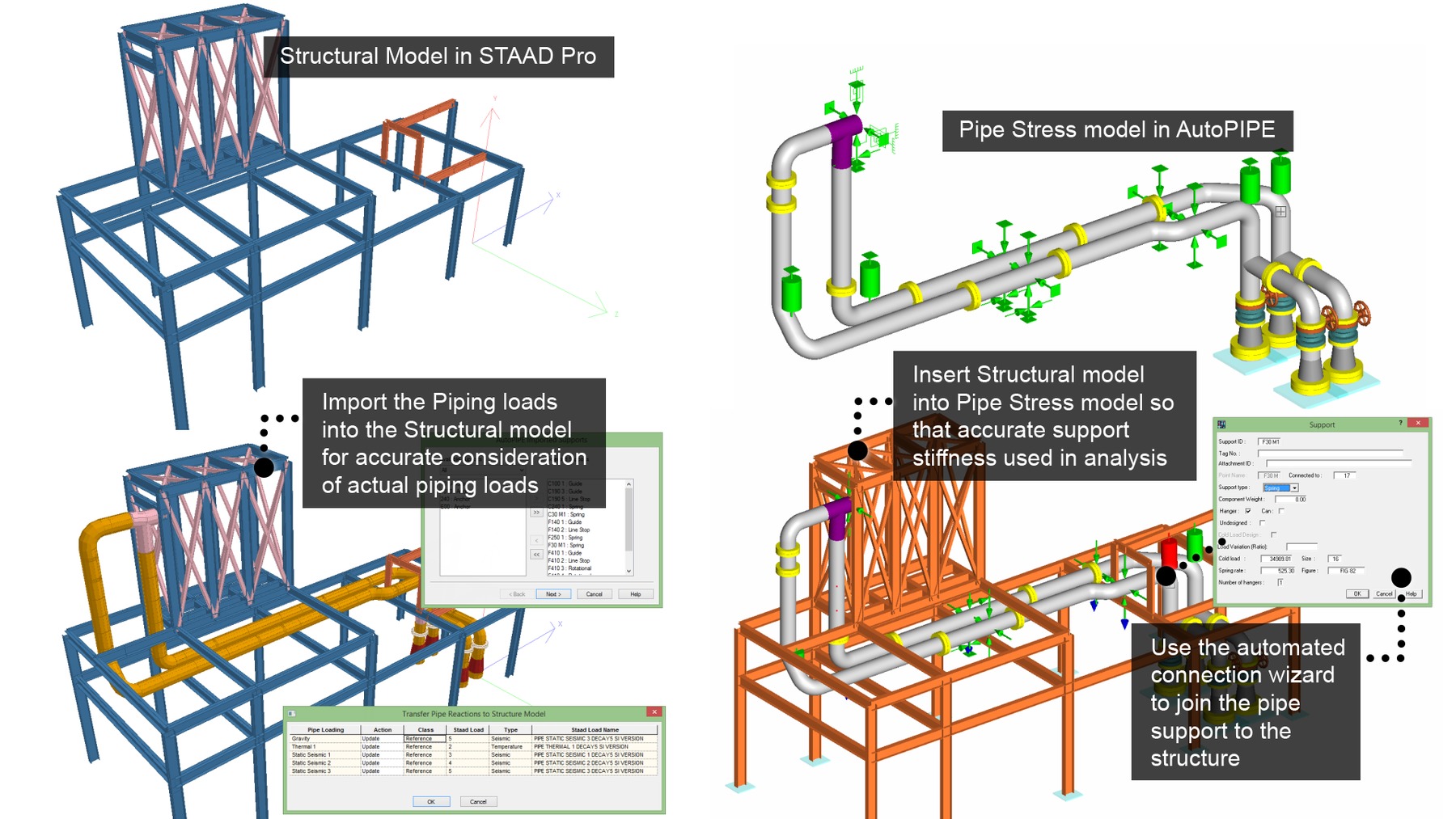

Reuse design data by creating a structural model in STAAD or SACS and import it into AutoPIPE for a more realistic, fully integrated, bi-directional piping and structural analysis. You can also import the final piping model, complete with pipe support loads, into the Bentley STAAD or SACS model.
