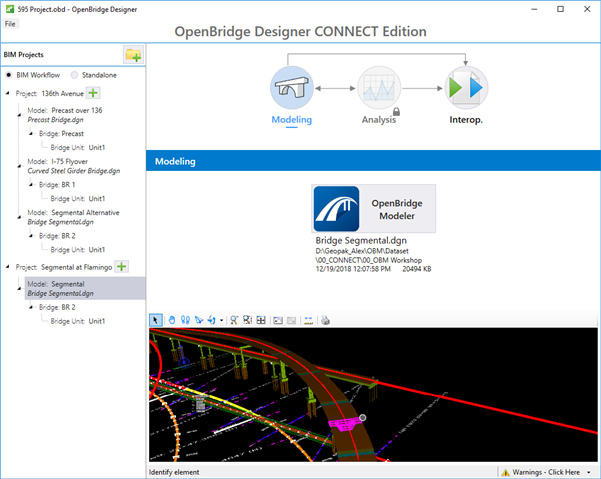

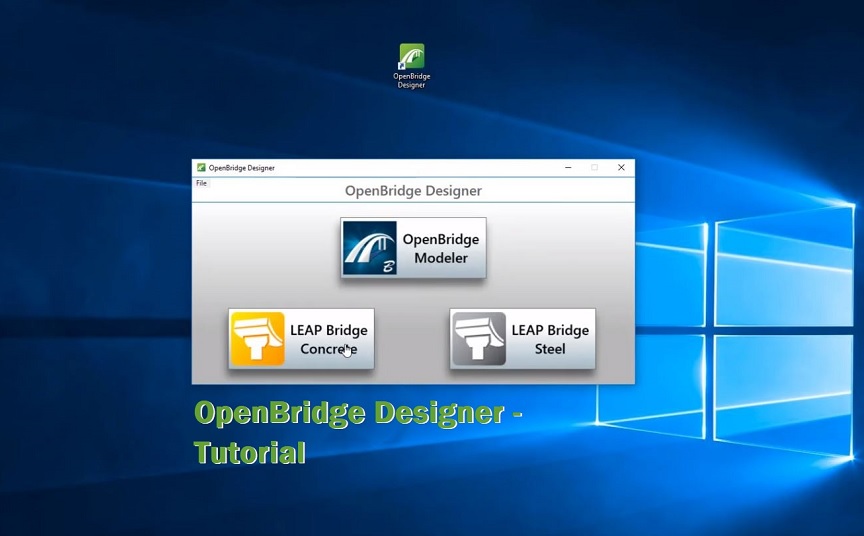

OpenBridge Designer CONNECT Edition is a complete Bridge design software suit supporting BrIM
OpenBridge Designer CONNECT Edition is a unique application that combines Modeling, Analysis, and Design into one comprehensive bridge product.
OpenBridge Designer CONNECT Edition can utilize the modeling capabilities of OpenBridge Modeler and the analysis and design features of LEAP Bridge Concrete, LEAP Bridge Steel, and RM Bridge to meet the design and construction needs of all bridge types.
OpenBridge Designer CONNECT Edition consolidates the modeling capabilities of OpenBridge Modeler and the analysis and design features of LEAP Bridge Concrete, LEAP Bridge Steel, RM Bridge, RM Bridge Advanced, and RM Bridge Enterprise to meet the design and construction needs of all types of bridges
OpenBridge Designer CONNECT Edition functionalities,
Analysis - Included Advanced Analytical tools,

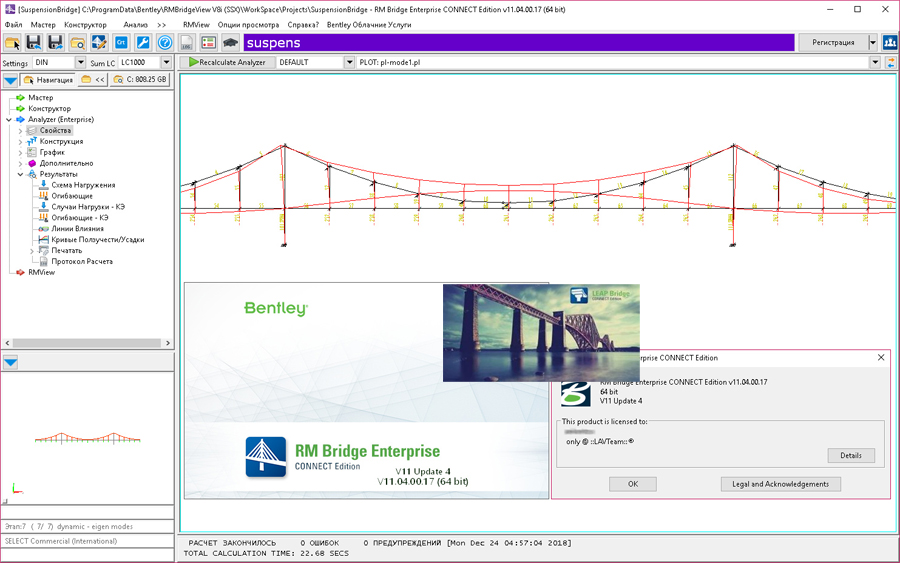

RM Bridge Enterprise - 4D Bridges Structural Analysis and Design Software.
LEAP Bridge Concrete - Small and Medium Concrete Bridges modeling and analysis software.

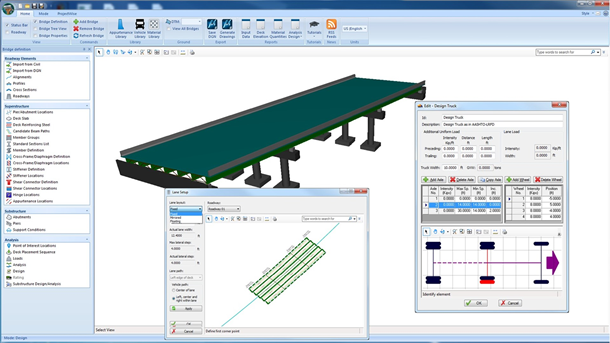

LEAP Bridge Steel - 3D Steel Brides Modeling, Analysis, and Design software. Following AASHTO LRFD.
RM Bridge Enterprise is included in OpenBridge Designer
LEAP Bridge is included in OpenBridge Designer both Steel and Concrete Bridge Design
Streamline bridge modeling, analysis, and load-rating for both existing and new bridges with an integrated toolset. Leverage various international design code specifications and rating methodologies for verification.
Reuse civil data obtained directly from Bentley road products such as GEOPAK, Bentley InRoads, or MXROAD, and import roadway information and ground data from LandXML files.
Exchange project information including bridge geometry, materials, loads, prestressing strand pattern, and shear reinforcement to improve decision making. Streamline engineering content management with real-time collaboration and share, reuse, and repurpose data throughout the bridge lifecycle to minimize risk of design error and construction issues.
Intelligently manage your data and streamline the process of modeling, analysis, design code checking, detailed design reports, and automated drawings. Support everyday concrete bridges of all types, including precast and cast-in-place, reinforced, pre-tensioned, and post-tensioned. Support multiple design codes, including US AASHTO LRFD and LFD, Canadian CHBDC, and Indian IRC Working Stress and Limit States Design.
Model, design, analyze, and load-rate and optimize steel I-girder and tub-girder bridges using powerful analysis techniques such as Finite Element Modeling (FEM) and Response Spectrum Analysis, according to AASHTO LRFD Bridge Design specifications.
Generate detailed reports. Create 3D models and 2D drawings for sections, elevations, and framing plans.
Develop detailed rebar designs, including bar marks, schedules, quantities, and drawings by connecting to ProStructures.
Respond to project changes by effortlessly updating the intelligent bridge model and leveraging built-in parametric relationships between bridge components.
Mitigate risk by performing conflict analysis of the bridge structure with existing infrastructure to save time, eliminate building errors, and reduce project costs. View clashes in 3D or in table format. Detect clashes with reinforcing steel and other embedments. Check for required minimum clearances between adjacent structures and roadways.
Exchange project models and information using i-models. With i-models, you can implement unique and powerful workflows for information sharing, distribution, and design review. These workflows can be further enhanced using ProjectWise and other products and services that leverage the power of i-models.
Investigate the different stages in stage-wise construction – comparing results, detecting the relevant states, and producing result envelopes for proof checking. Account for creep, shrinkage, and relaxation and solve problems before construction begins.
Experience instantaneous 3D visualization of the bridge superstructure and substructure. Visualize designs and rapidly verify modeling input as you work. View in-profile, elevation, and cross-section views with solid and transparent view options to help explore areas with complex geometry.
