ProSteel CONNECT Edition

Steel Structures Modeling, and Automated detailing drawings

ProSteel CONNECT Edition is Steel Structures Modeling and Automated detailed drawings for fabrication.


With ProSteel CONNECT Edition, you can...

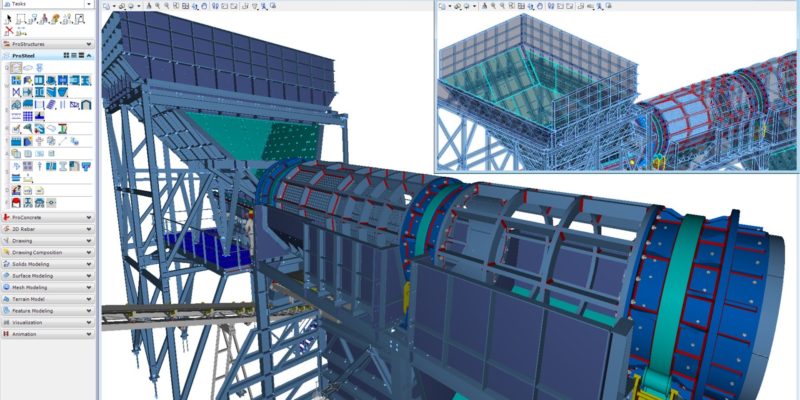

    Efficiently create accurate 3D models for structural steel, metalwork, and steel assemblies.

    Generate design drawings, fabrication details, and schedules that automatically update whenever the 3D model changes.

    Additionally, detailed output to CNC machines automates the steel fabrication process.

    Bi-directionally transfer models with STAAD.Pro and others via ISM.

ProSteel CONNECT Edition fully supports your construction and planning tasks for structural steel and metalwork in a 3D modeling environment. Working with AutoCAD or MicroStation, you get an intuitive and integrated multi-material modeler perfectly suited to layout complex structures, produce shop drawings, assemble all your connections, and manage your bills of materials.



  • Quickly extract 2D drawings that automatically update when the 3D model changes.
  • Easily exchange information with other disciplines thanks to interoperability with other Bentley and third-party applications.
  • Efficiently create parametric assembly modeling for common objects such as steel stairs, handrails, and ladders.
  • Rapidly investigate multiple scenarios to provide the most economical options to your client.


Highlight Features

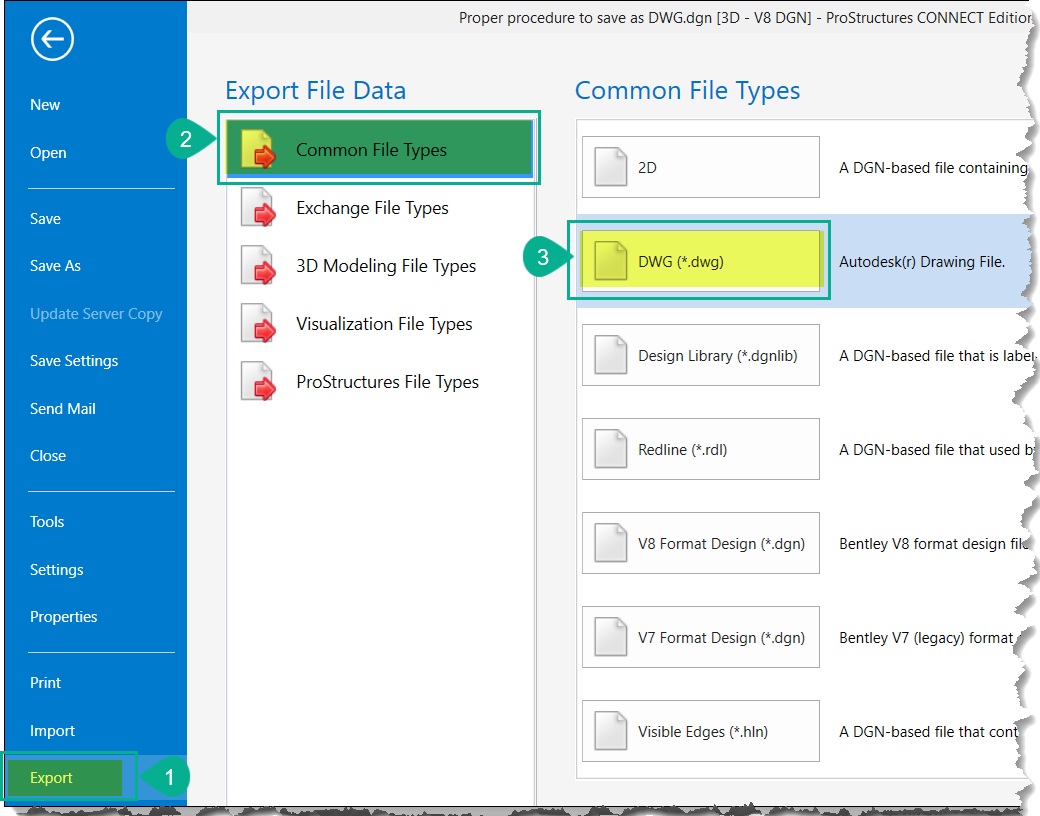

      1.     Save DGN file as a DWG file

              Source: Bentley Community - ProSteel CONNECT Edition/Save DGN as DWG

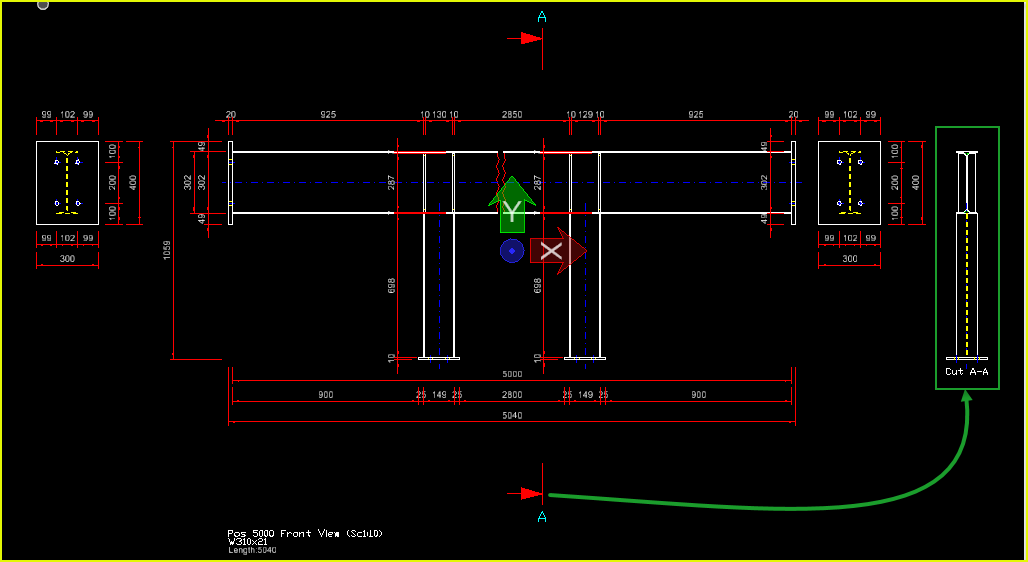

      2.     Automatically create 2D cut and show section block

              Source: Bentley Community - ProSteel CONNECT Edition/Auto create 2D cut

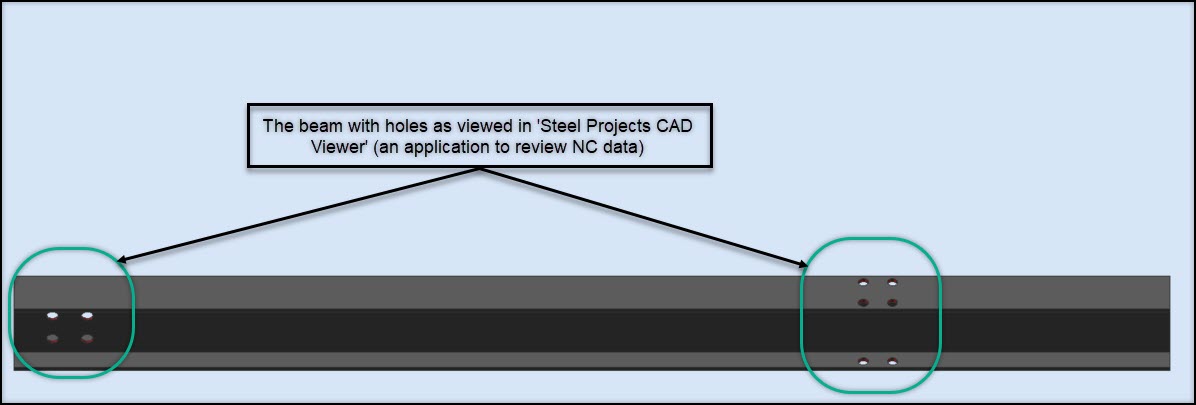

     3.     Generate NC data for CNC machines

             Source: Source: Bentley Community - ProSteel CONNECT Edition/NC data generation
