Steel AutoDrafter

Steel structure drawing and Material take-off extraction for STAAD

Steel AutoDrafter is  Steel extraction drawings (2D Drawing, GA Drawing) and Material take-off software from a structural steel model prepared in STAAD.Pro CONNECT Edition V22 onward.

*Steel AutoDrafter is not a separate product, it comes with subscription services.

** If you interested in STAAD Planwin or BuildingPlanner, please directly contact us via CHAT or Line Official @reisoftware

  Steel AutoDrafter - Features:

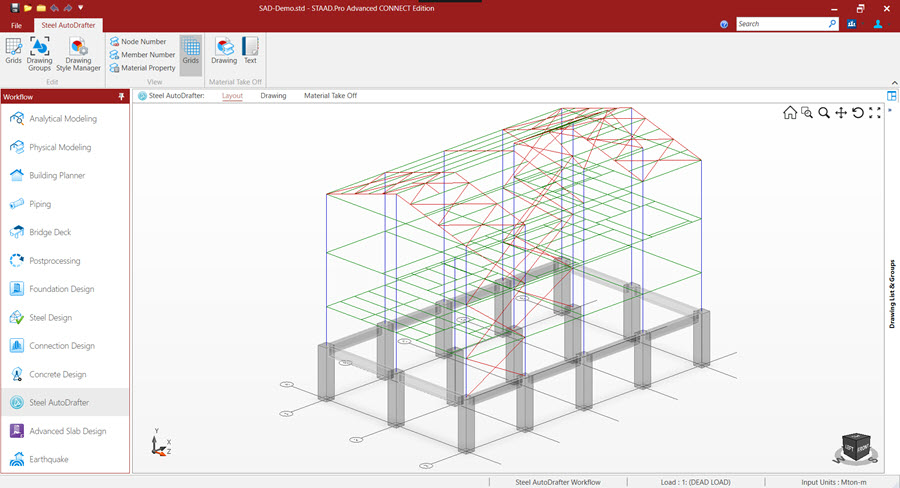

  • Converts and Extracts STAAD.Pro analysis model into a General Arrangement drawings
  • Produces quality plans and layout at any level and section including Japanese steel section.
  • Computes Material Take Off at a drawing and project level.

* Click to watch On-Demand Video as following.
