STAAD RCDC CONNECT Edition
Advanced Concrete Design, and Drawing Software

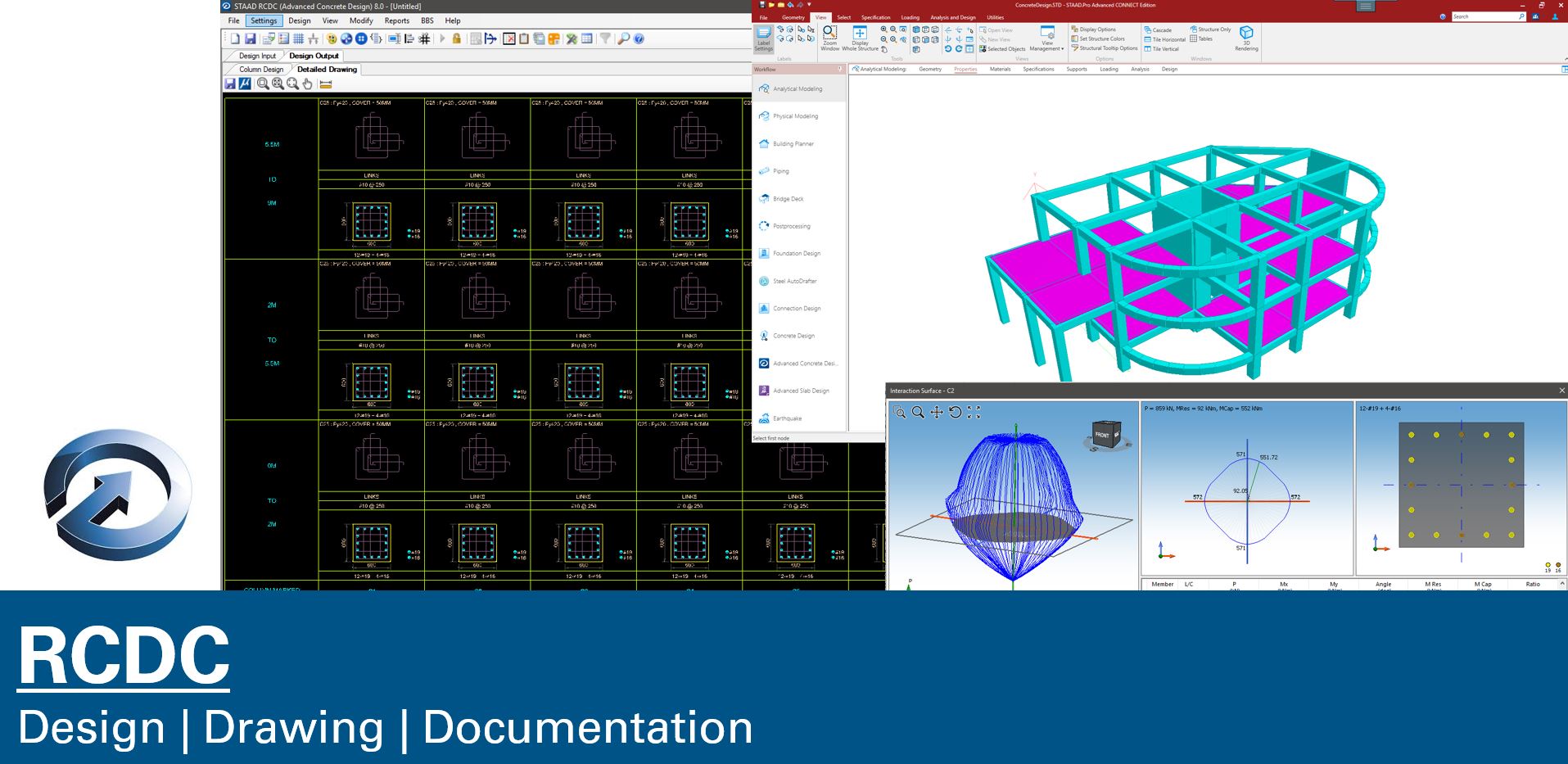

STAAD RCDC CONNECT Edition or STAAD Advanced Concrete Design is a brand new software offering advanced customizable reinforced concrete design, searchable reports, automated plans, elevations, sections, schedules, and detailed drawings for beams, columns, panel slabs, shear walls working directly off STAAD.Pro geometry and analytical results.
* STAAD RCDC is included in STAAD.Pro Advanced CONNECT Edition license only

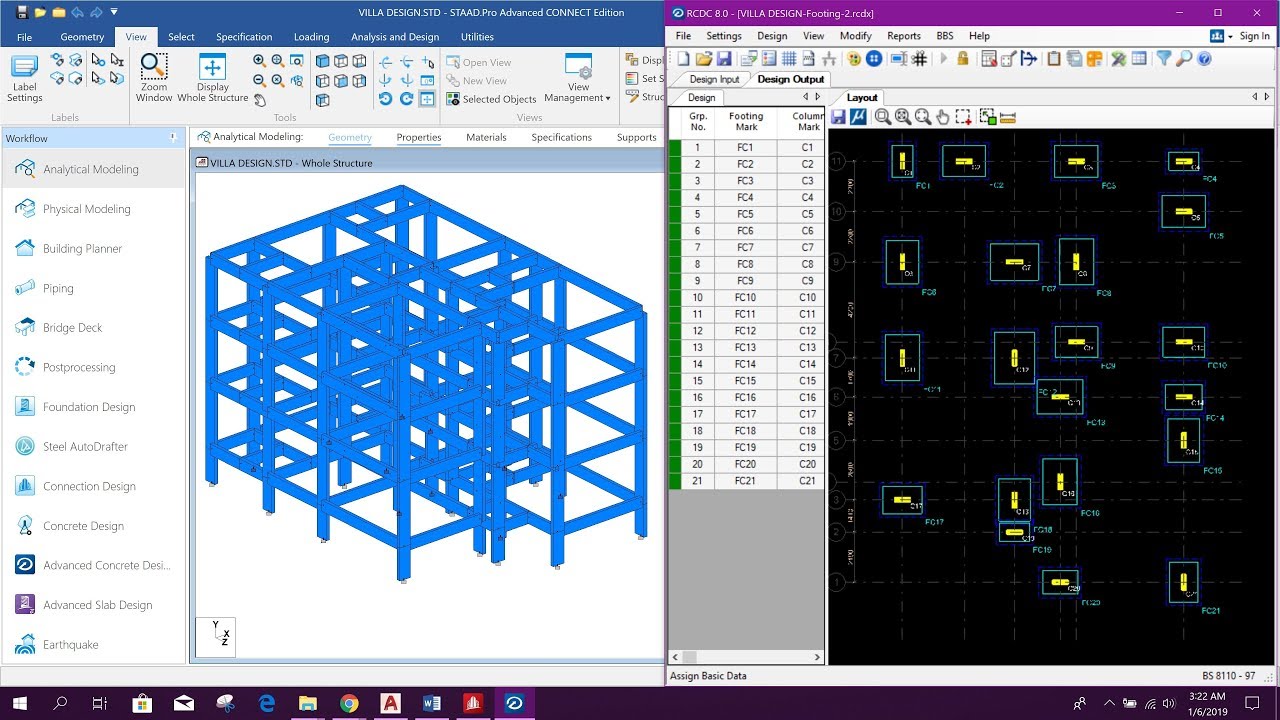

With STAAD RCDC CONNECT Edition, one can now take a STAAD.Pro model and generate designs, drawings, and schedules for concrete components of structures to one of a variety of design codes.
You can design and detail the following:-
- Beams
- Columns
- Shear Walls
- Foundations
- Pile caps
- Staircases
Design codes supported.
- IS 456 + IS 13920 (1993)
- IS 456 + IS 13920 (2016)
- Eurocode EN 1992
- ACI 318M - 11
- ACI 318-2011 (FPS Unit)
- ACI 318M-2014
- ACI 318-2014 (FPS Unit)
- BS8110-1997
** If you interested in STAAD RCDC, please directly contact us via CHAT or Line Official : @reisoftware
Video
Capabilities
- Comply with seismic requirements
- Optimize or analyze beams, columns, and walls to quickly obtain safe and economical designs
- Design non-traditional and custom shapes
- Design to international standards
- Model concrete floor-based structures with the optional floor planner for efficient modeling.
- Produce comprehensive quantity takeoffs
- Produce concrete drawings and schedules
Comply with seismic requirements
Design and detail seismic force-resisting systems, generating seismic loads according to the relevant building code. Consider these forces in the design of elements and, where applicable, the design of frames and the larger structural system. Enforce the ductility requirements of the selected design code in element proport

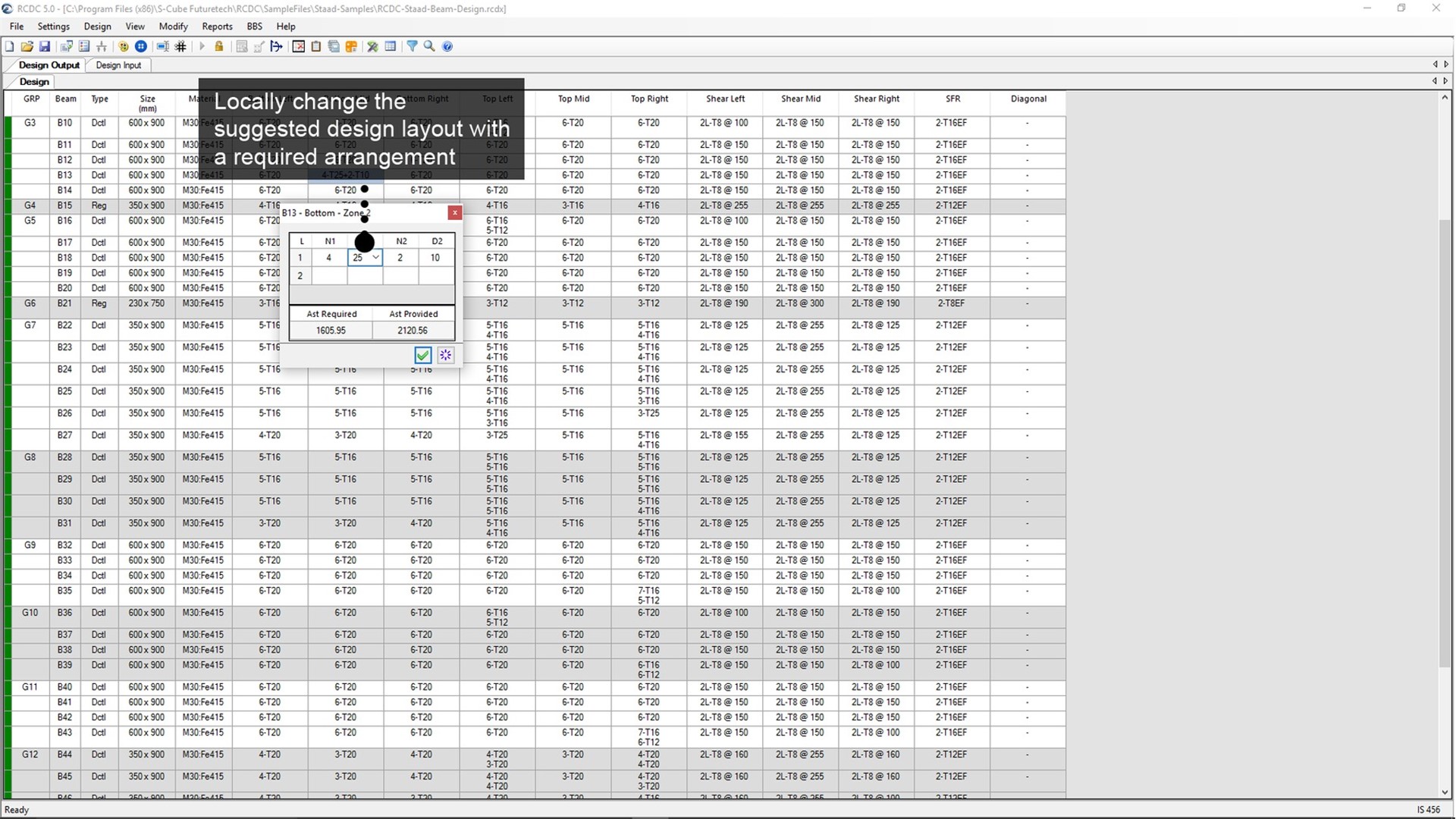

Optimize or analyze beams, columns, and walls to quickly obtain safe and economical designs
Optimize or analyze beams, columns, and walls for gravity and lateral loads to quickly obtain safe and economical designs. Confidently produce designs in compliance with global design specifications and building codes.
Design non-traditional and custom shapes
Control concrete beam, wall, and column designs including L, T, and C shapes. Create and check irregular bar layouts including stirrups and links using a broad range of material and design properties. Account for continuity in column stacks and beam lines when determining appropriate reinforcing layout.
Design to international standards
Extend the reach of your business practice and take advantage of global design opportunities by using a wide range of international standards and specifications in our design products. Complete your designs with confidence thanks to extensive support of international standards.
Model concrete floor-based structures with the optional floor planner for efficient modeling.
Model your floor based structures including slabs, openings, beams, and columns with the optional floor planner for efficient modeling.
Produce comprehensive quantity takeoffs
Gain critical insight into concrete design alternatives with comprehensive material takeoffs and cost estimation, organized by material, size and shape. Estimate formwork area and costs upfront.

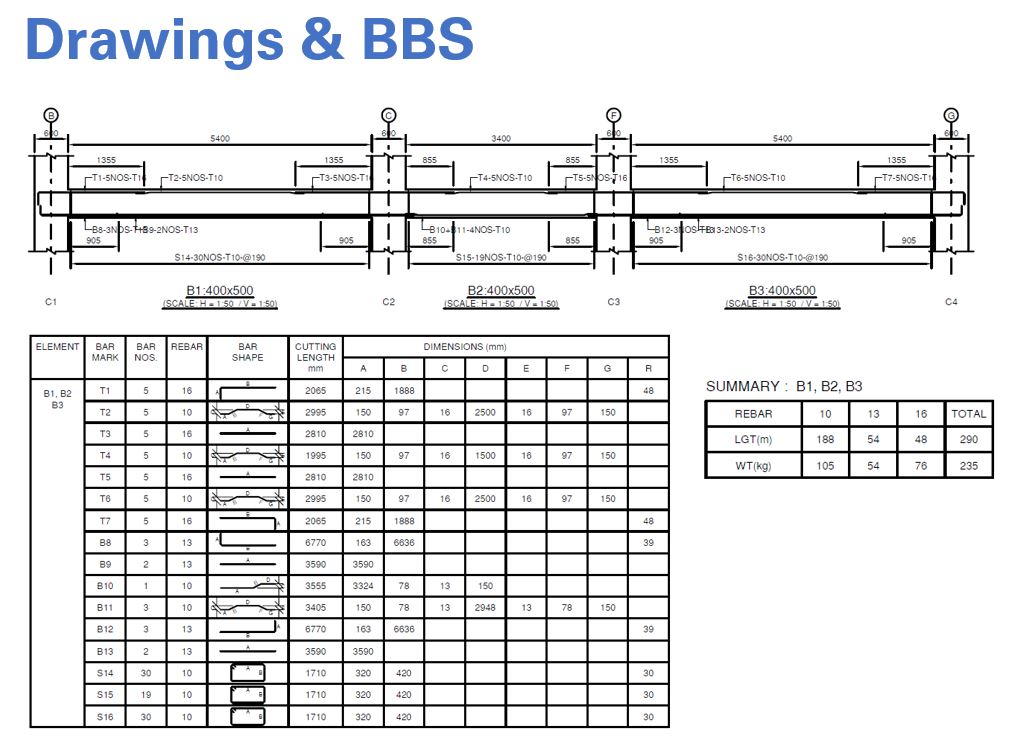

Produce concrete drawings and schedules
Produce comprehensive reinforcing drawings including automated rebar labels, dimensions, and notes, as well as rebar placing drawings, including sections, plans, and details from the 3D model. Customize all drawings to adhere to your company's standards. Automatically update drawings based on changes to the 3D model.
