RAM Connection CONNECT Edition
Steel Connection Design and Drawing Software
RAM Connection CONNECT Edition is a steel connection design and drawing software,

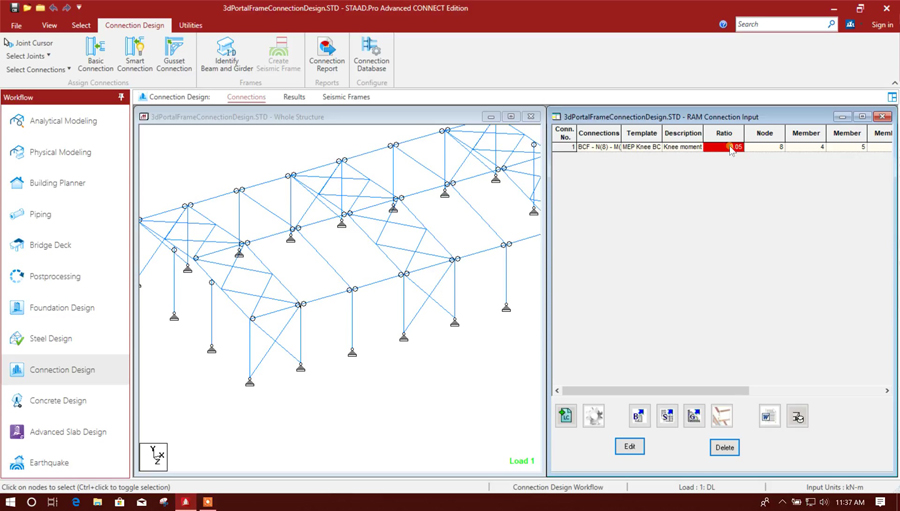

RAM Connection CONNECT Edition is fully integrated with RAM Structural System, RAM Elements, STAAD.Pro, and the forthcoming ProStructures.
RAM Connection CONNECT Edition has both built-in and Standalone.
* RAM Connection Standalone license is required.
RAM Connection CONNECT Edition Update 3 (V13.3.0) - Release note - Updated July 2020 !
RAM Connection CONNECT Edition - features:
- Fully integration of wide-used structural analysis and design software.

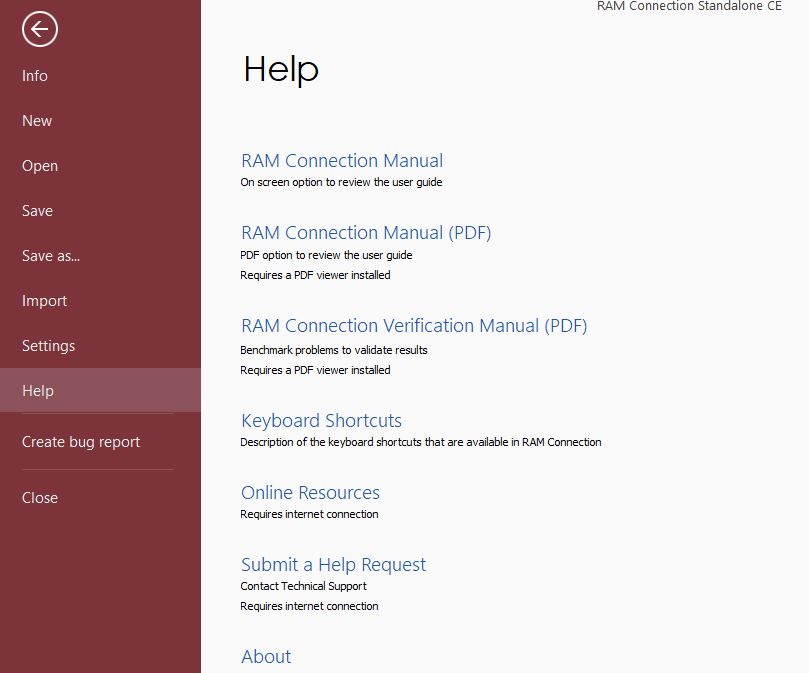

- Easy to find Online Help and Online Manual.

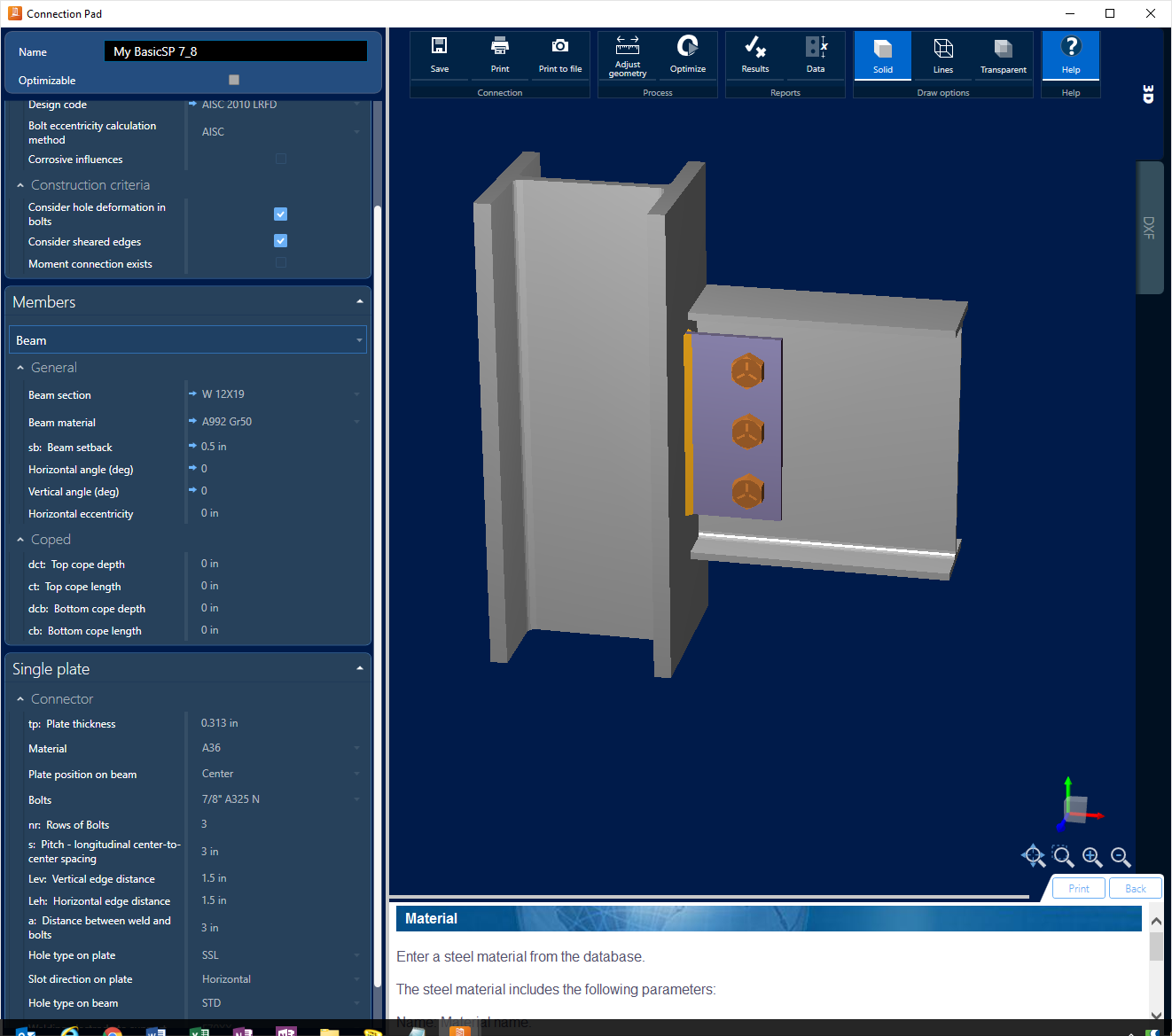

- Comprehensive connection types

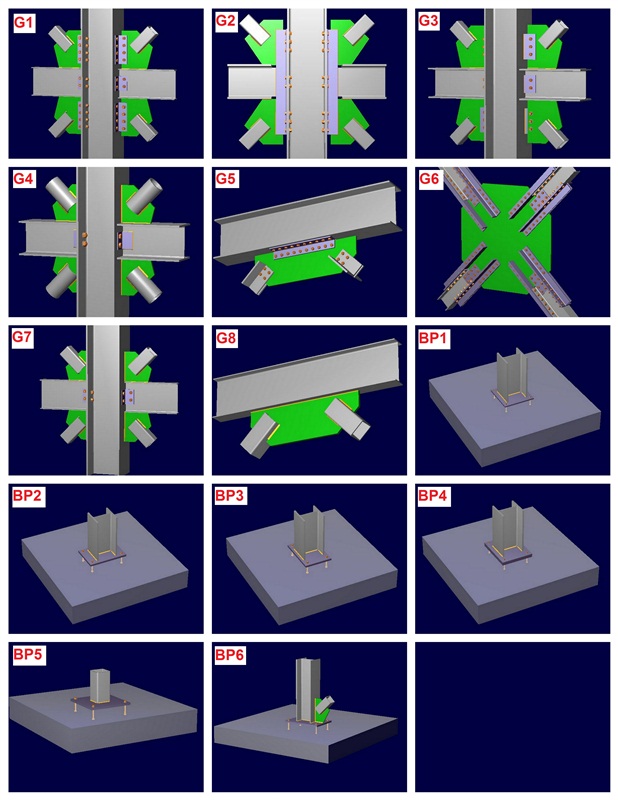

With all types of steel connection design for the U.S., U.K., Europe, China, and India codes. Connection types include shear, moment, splice, and brace connections:
1. Beam - Column Flange (BCF)
2. Beam - Column Web (BCW)
3. Beam - Girder (BG)
4. Beam Splice (BS)
5. Column Splice (CS)
6. Continuous beam over column (CC)
7. Column, beams, and braces (CBB)
8. Chevron braces (CVR)
9. Vertical X braces (VXB)
10. Column - Base (CB)
11. Column - Base - Braces (CB)
12. Horizontal column, beam, and brace (HCBB)
13. Horizontal beam, beam, and brace (HBBB)
14. Horizontal X braces (HXB)
And tubular connections design for trusses.
- Entering user-defined connection tables and rules-of-thumb to conform to your office standards.

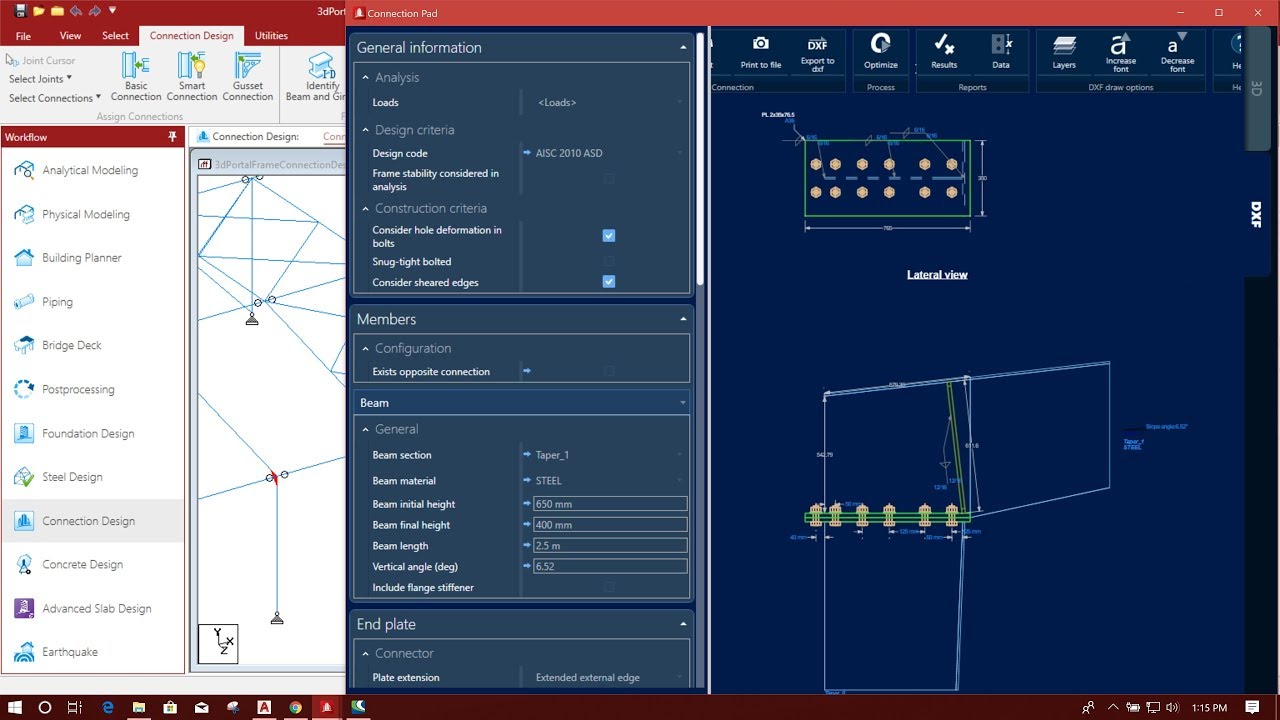

- Providing ease-to-use CAD Drawing and detailing.

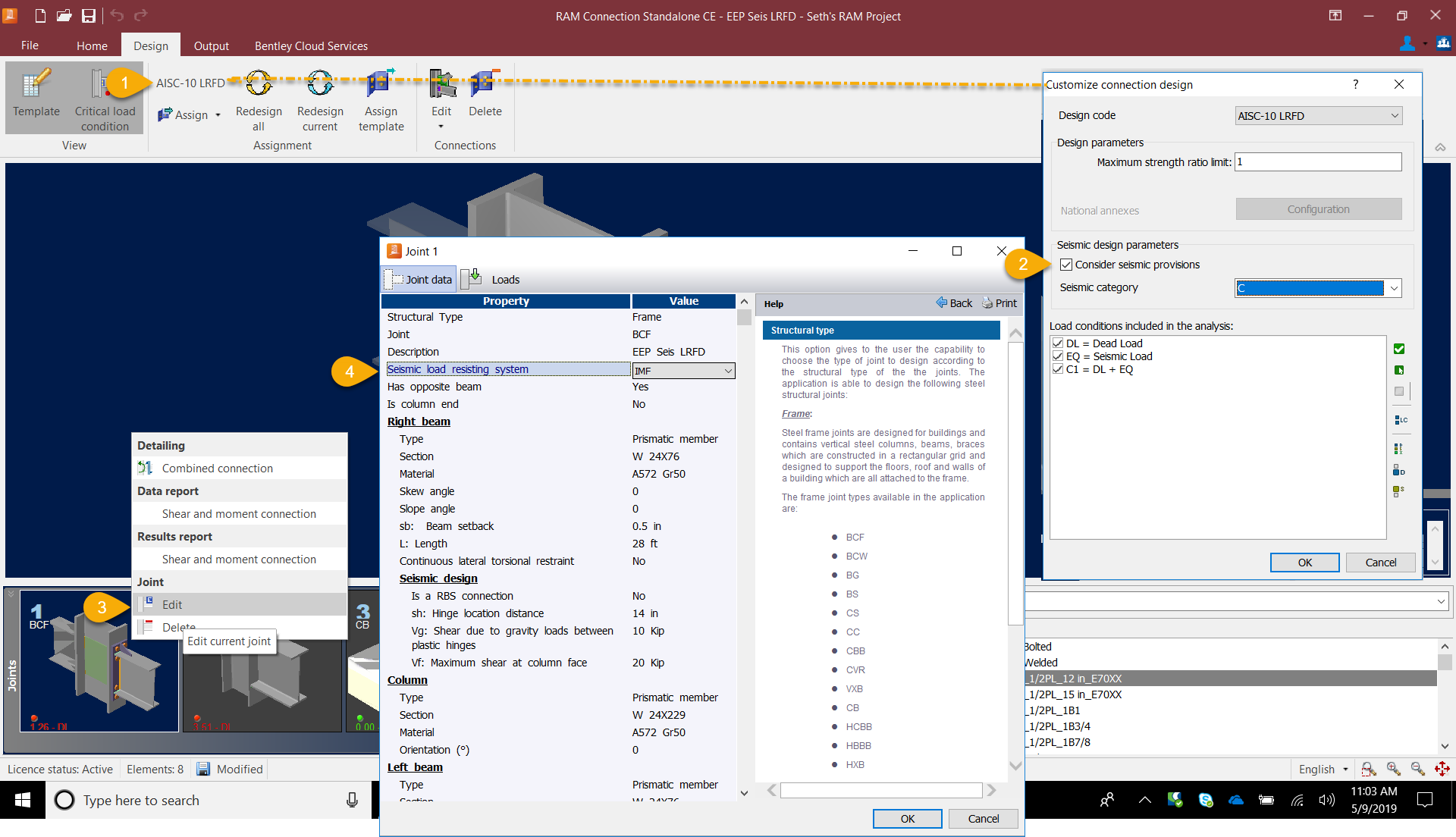

- Supporting Seismic connection design.

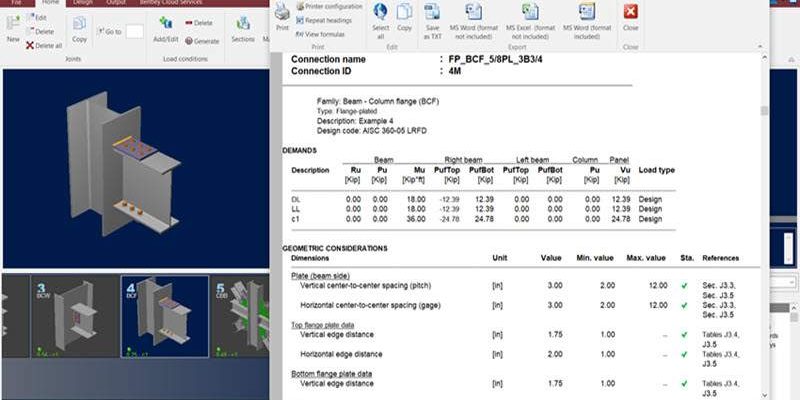

- Comprehensive reports.
* Online Manual - RAM Connection CONNECT Edition
Video
Capabilities
- Comply with seismic requirements. Design and detail seismic force-resisting systems, generating seismic loads according to the relevant building code.
- Design structural steel connections. Easily compare the economy and practicality of connection scenarios.
- Design to international standards
- Produce structural design documentation
- Produce structural details
Comply with seismic requirements. Design and detail seismic force-resisting systems, generating seismic loads according to the relevant building code.
Design and detail seismic force-resisting systems, generating seismic loads according to the relevant building code. Consider these forces in the design of elements and, where applicable, the design of frames and the larger structural system. Enforce the ductility requirements of the selected design code in element proportioning and detailing.
Design structural steel connections. Easily compare the economy and practicality of connection scenarios.
Design and detail structural steel connections, including beam-to-beam, beam-to-column, brace end, and complex multi-member connections. Simplify the arrangement of plates, stiffeners, bolts, and welds with a comprehensive library of standard connection types. Easily compare the economy and practicality of connection scenarios.
Design to international standards
Extend the reach of your business practice and take advantage of global design opportunities by using a wide range of international standards and specifications in our design products. Complete your designs with confidence thanks to extensive support of international standards
Produce structural design documentation
Generate structural design documents including necessary plans and elevations that are used to convey the design intent. Changes made to the 3D model are automatically updated in the documentation.
Produce structural details
Produce detailed 2D drawings directly from design results established in the structural model. Customize the style and format of the drawings using settings offered within the software.
